Depending on the technical characteristics, this type of capacitive equipment can be used in various fields of activity. Tanks of the type are used for storage, as well as the reception and delivery of petroleum products, fuels and lubricants, industrial and drinking water, rainwater, bitumen, etc.

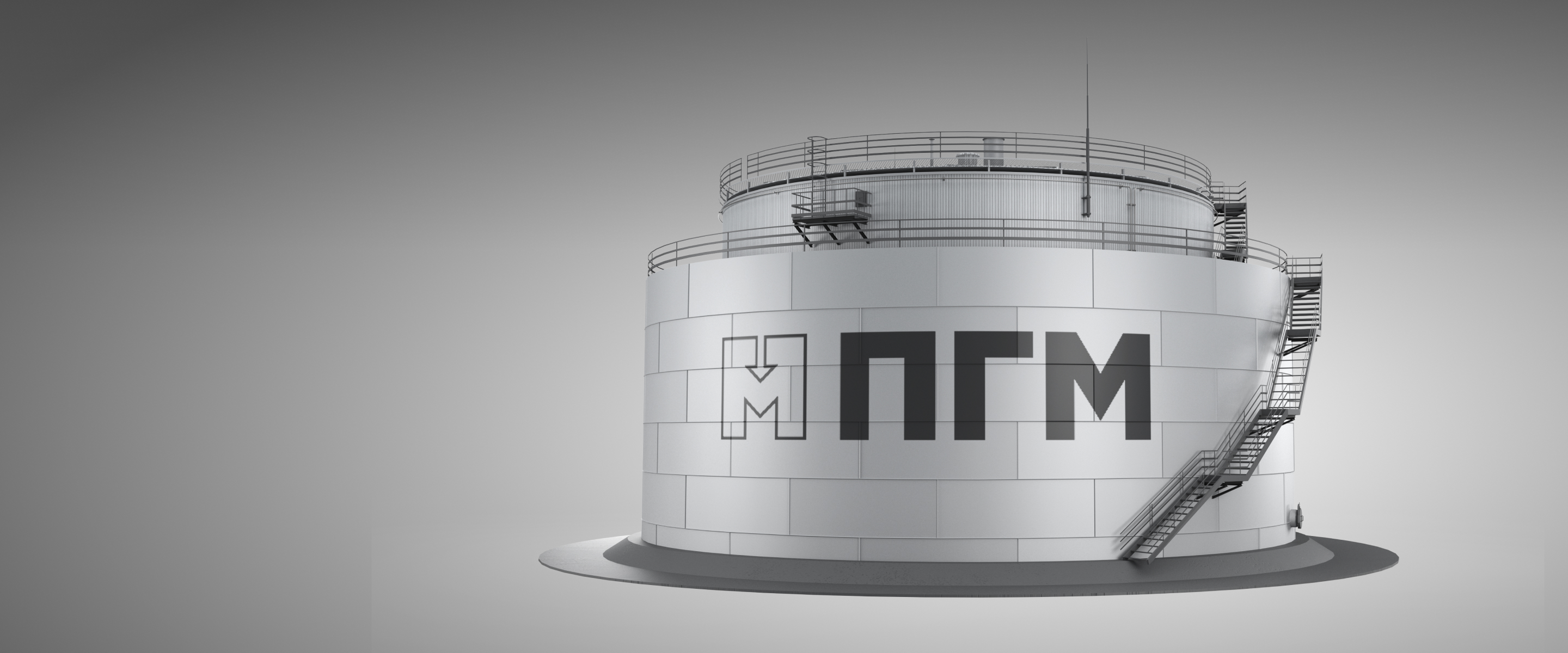

The apparatus is designed as a welded cylindrical vessel with a flat bottom and a fixed roof, mounted vertically. In addition to the standard assembly, the vertical metal tank can be additionally equipped with stairs and service areas. Depending on the application and climatic conditions, the apparatus can be made with a heat-insulating jacket. At the request of the customer, the installation of thermal insulation in the tank is possible separately only on the wall of the vessel or on the entire surface of the apparatus, including the roof.
Volume, V, m3 | The internal diameter of the apparatus, Dв, mm | Conditional pressure, Ru, MPa, no more | Length, L, mm | Height, H, mm |
---|---|---|---|---|
5,0 | 1600 | 0,05 | 2785 | 2835 |
10,0 | 2200 | 0,05 | 3335 | 3685 |
25,0 | 2760 | 0,05 | 4990 | 4430 |
50,0 | 2760 | 0,05 | 10100 | 5000 |
75,0 | 3000 | 0,05 | 10100 | 4680 |
100,0 | 3000 | 0,05 | 14030 | 4485 |
200,0 | 3424 | 0,05 | 22800 | 4012 |
