Horizontal steel tanks RGSN are quite versatile equipment and, depending on the technical characteristics, can be used in almost any industry. This type of tank equipment is suitable for receiving and dispensing, as well as storing petroleum products, fuels and lubricants, bitumen, industrial and drinking water and other liquid media.

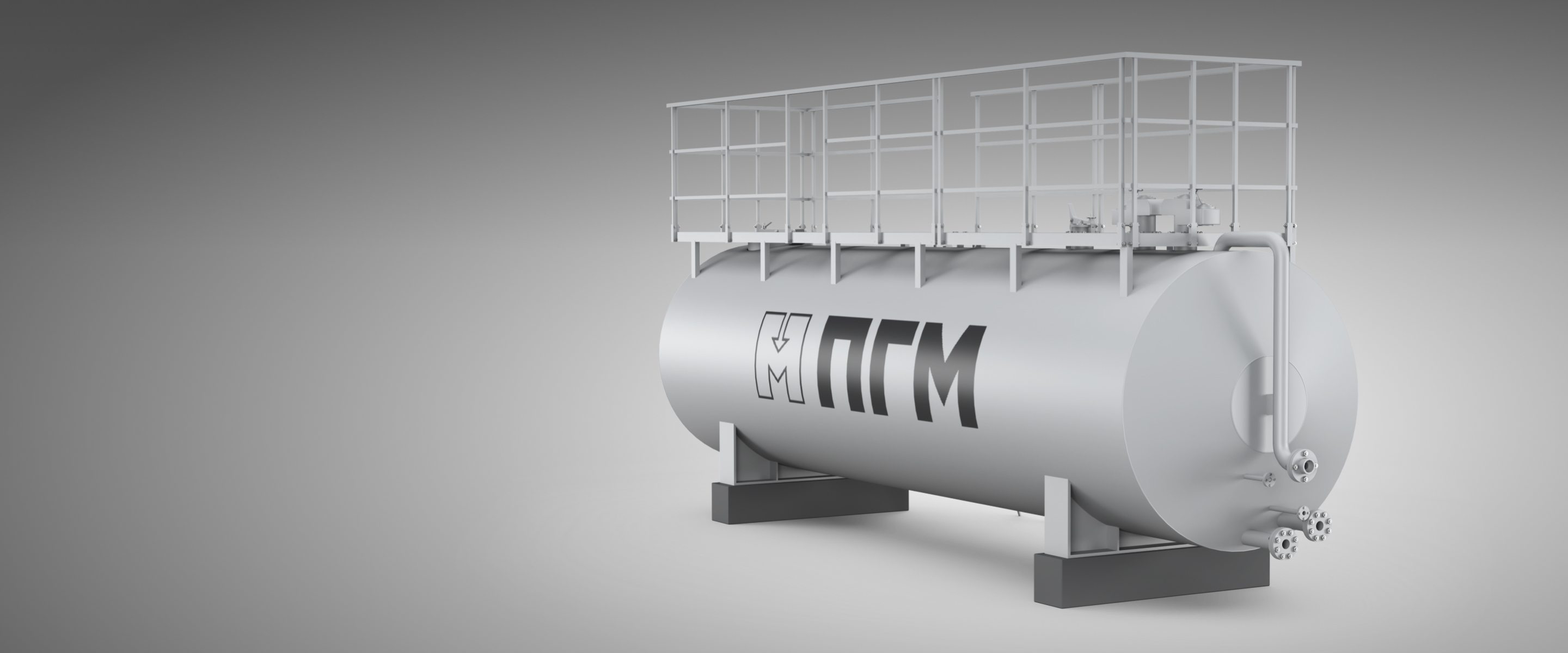

The tank itself is a horizontal cylindrical vessel mounted on steel supports. The device provides as a ground (RGSN) installation in dry and wet soils. At the request of the customer, the horizontal reservoir of the CWG can be single-walled and double-walled and have a volume of 1 m3 to 200 m3. It is also possible to equip the device with stairs, service areas, additional fittings and other details.
Volume, V, m3 | The internal diameter of the apparatus, Dв, mm | Conditional pressure, Ru, MPa, no more | Length, L, mm | Height, H, mm |
---|---|---|---|---|
5,0 | 1600 | 0,05 | 2785 | 2835 |
10,0 | 2200 | 0,05 | 3335 | 3685 |
25,0 | 2760 | 0,05 | 4990 | 4430 |
50,0 | 2760 | 0,05 | 10100 | 5000 |
75,0 | 3000 | 0,05 | 10100 | 4680 |
100,0 | 3000 | 0,05 | 14030 | 4485 |
200,0 | 3424 | 0,05 | 22800 | 4012 |
